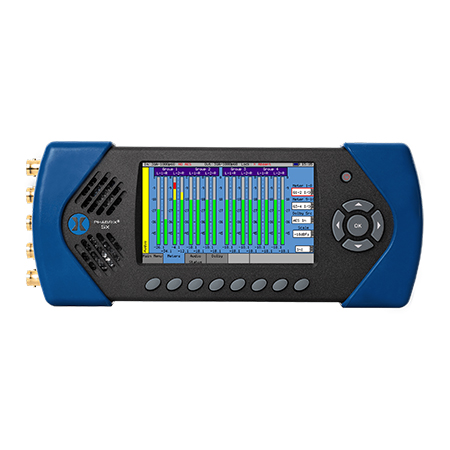

Phabrix SxA

PHSXAES – Details

• Features:

  • Simultaneous generation and analysis for SMPTE compliance testing
  • 3G/HD/SD-SDI support
  • Embedded audio generation, analysis & monitoring with 1x AES in, 1x AES out, 48kHz 75 Ohm
  • Auto Bi-level, Tri-level and SDI genlock with cross lock capability
  • Over 350 formats supported for compliance monitoring
  • 12-bit waveform monitor with YCbCr, Y, Cb, Cr and GBR format display and horizontal/vertical graticules
  • Vectorscope for checking color bias / conformity
  • Signal generation with 32 test patterns, including Pathological and moving patterns
  • CRC error detection, video aspect ratio detection and SMPTE 351 display
  • HANC/VANC support
  • Pixel check and picture zoom
  • Embed a single external 48kHz synchronous AES stream into the generated video stream
  • Extract embedded audio and export it via the AES output
  • 16 channel audio metering
  • Dolby® E, Dolby® Digital and Dolby® Digital Plus bitstream analysis
  • TCP/IP interface for remote control and automated testing
  • Comprehensive status logging with custom reports
  • Instrument picture capture to simplify fault finding
  • High quality, 16:9 built-in screen for video monitoring
  • Rechargeable lithium battery delivers 1-2 hours operation and mains power also available
  • Superior ease of use with color coded GUI
  • Lightweight at 0.7kg
  • Rugged aluminium case for demanding broadcast environments


• Specifications:

  • Monitor Details
  • Display resolution: 480 x 272 pixels auto scaling
  • Display type: 16:9 24 bit color TFT
  • Display size: 95 x 54 mm
  • Processing: All digitalVideo
  • SDI: 3G-SDI, HD-SDI SD-SDI
  • Outputs: 1 x 75 Ohm BNC
  • Inputs: 1 x 75 Ohm BNC
  • Genlock: Bi/Tri/SDI with cross lock
  • Adjustable timing: 0 to 1 Frame
  • Text Ident: Yes with font, color and point size
  • Logo ident: Yes
  • EDH: Yes (SD-SDI)Video Test Signal
  • Resolution: 10 bits
  • Static Test patterns: 32+ including full frame
  • Moving Zone Plate: Yes
  • User defined: DPX,YUV,TGA,BMPAudio
  • Internal speaker: 0.5 watts
  • Audio DAC: 24 bit stereo
  • Headphone socket: 3.5 mm with auto line out
  • Generator/Monitor: 48 kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
  • 16 channel embedded audio: Yes
  • AES output: 1 x 75 Ohm BNC
  • AES intput: 1 x 75 Ohm BNCAudio Test Signal
  • Fixed tones: 17
  • Variable tones: 1 Hz-24 Khz in 1Hz steps
  • Intermittent Tone: Yes
  • White noise generation: Yes
  • Audio levels variable: 0 to -100dB in 1dB steps
  • Audio phase invert: YesGeneral
  • Navigation panel: 5 menu keys 8 custom select/program
  • Integral battery supply: Yes
  • Internal Storage: 8GB (upgradable)
  • Remote control: Web browser interface
  • Ethernet/USB: Yes
  • Security: Kensington lock fitting
  • Size: H:92mm W: 225mm D: 42mm
  • Weight: 0.7kgs


• Item Includes:

  • Carry case
  • AC power supply
