Advanced, Hybrid IP/SDI Toolset

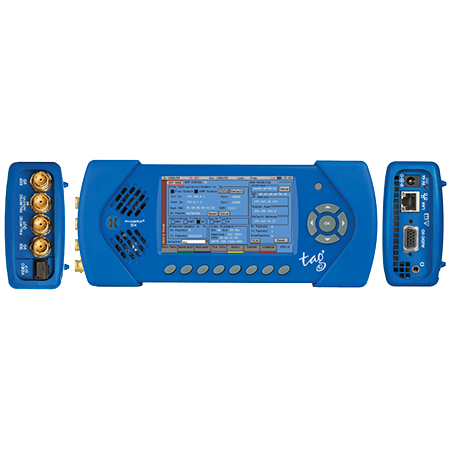

Phabrix SxTAG with its SFP, SDI and analog I/O offers incredible versatility in a handheld device. It is ideal for IP, 3G/HD/SD-SDI, optical SDI, HDMI and Analog test & measurement as well as AES eye analysis, for applications demanding true mobility and ease of use.

It provides support for SMPTE ST 2110-20/30/40 encapsulation/decapsulation with ST 2059 PTP, SDP and NMOS as well as SMPTE ST 2022-6 encapsulation/ decapsulation, using 10GE IP SFP+ modules developed by Embrionix.

Phabrix SxTAG SPECIFICATIONS

Monitor Details

Display Resolution 480 x 272 pixels auto scaling
Display Type 16:9 24 bit color TFT
Display Size 95 x 54mm
Processing All digital

SDI Video Input/Output

SDI Format SD-SDI, HD-SDI (3G-SDI Option)
SDI Input/Output 1 x 75 Ohm BNC
EDH Yes (SD-SDI)

Reference Input/Output

Genlock Bi/Tri/SDI with cross lock
Ref Generator Bi-level PAL/NTSC +/- 5ppm
Generator Timing 0 to 1 Frame WRT reference source

Composite Video Input/Output

Composite formats PAL/NTSC
Composite Input/Output 1 x 75 Ohm BNC
SFP Input/Output Optical/Copper/HDMI -Tx/Rx (Optional)
IP SMPTE 2110 & 2022-6 Tx/Rx (Optional)

Audio

Internal Speaker 0.5 watts
Audio DAC 24 bit stereo
Headphone socket 3.5mm with audio line out
Generator/Monitor 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
Metering 16 channel PPM with phase indication
AES Output/Input 75 Ohm AES Pair via 15-way D-type
Analog Output/Input Balanced stereo pair via 15-way D-type

General

Navigation panel 5 menu keys, 8 custom select
Integral battery supply 1-2 hours lithium polymer
Internal storage 8GB
Remote Control Web browser interface
Ethernet Web server, remote control (TCP/IP sockets)
Carry case Included
AC power supplier Included (universal)
Security Kensington lock fitting
Weight/Size 900g, H:92mm, W:225mm, D:42mm

Sx TAG ORDERING

Sx TAG

PHSXTAGC TAG Analyser/Generator/Monitor – SD/HD Handheld (Includes PHSXM-CAGEP and PHSXO-GEN)
PHSXTAGC-IP TAG Analyser/Generator/Monitor + IP – PHSXTAGC + PHSXO-IP + PHSFP-10SR-IP (multi-mode only)
PHSXTAGC2IP TAGC to TAGC-IP upgrade – Return to factory upgrade (up to and inc. serial no: 006381) includes PHSXO-IP, PHSXM-CAGEP & PHSFP-10SR-IP (multi-mode only)

Options

PHSXO-GEN Multi-format Signal Generator – Upgrades PHSXTAG to PHSXTAGC (included free with new purchases)
PHSXO-AVD AV Delay Analysis – Analyser supports EBU and LAWO AV delay sequences (option for PHSXTAGC or PHSXTAGC-IP
PHSXO-3GADV * 3G, Advanced video formats + 2K – 3G-SDI, 422/444, YUV/RGB, 10/12 bit, SMPTE 428-9 D-Cinema/SMPTE ST 2048-2:201
PHSXOS * Command Scripts + Reports – Repeat testing + create print report
PHSXOSD * SDI Data display + VANC/ANC Inspector – Detailed SDI data display
PHSXOR * Enhanced Remote Control – TCP/IP sockets based remote control
PHSXOZ * Zone plate generator – Programmable zone plate generator
PHSXO-DAG * Dolby E/D/D+ analysis + generation – Dolby streaming, metering, timing
PHSXO-ENGT Engineering bundle (*) – PHSXO-3GADV,PHSXOS,PHSXOSD,PHSXOR,PHSXOZ,PHSXO-DAG (price includes 40% discount)
PHSXOVNC Ancillary Status grid display – HANC/VANC indicator only (included free with new purchases)
PHSXO-EDID HDMI EDID viewer – Software license for HDMI EDID viewer (requires PHSFP-HDMI-OUT)
PHSXO-IP IP Encap/Decap license – Software license for 10GE IP ST 2022-6, ST 2110, NMOS IS-04/05/08 (requires PHSFP-10SR-IP)

SFPs

PHSFP-RT30-1310
SFP optical transceiver 3G/HD/SD – Medium haul, Non-MSA, Tx 1310nm, Rx 1260-1620nm (requires GEN option for Tx)
PHSFP-RT30-1550
SFP optical transceiver 3G/HD/SD – 50km, Non-MSA, Tx 1550nm, Rx 1260-1620nm (requires GEN option for Tx)
PHSFP-RT30-HDBNC
SFP electrical transceiver 3G/HD/SD – HDBNC, Non-MSA, includes 2x HDBNC – BNC cables (requires GEN option for Tx)
PHSFP-HDMI-IN
SFP HDMI-SDI Input convertor – HDMI v1.4 / DVI 1.0 providing HDMI view (requires PHSXO-3GADV for 3G payloads)
PHSFP-HDMI-OUT
SFP SDI-HDMI Output convertor – HDMI v1.4 / DVI 1.0 for HDMI signal generation (requires GEN option, PHSXO-3GADV for 3G payloads)
PHSFP-10SR-IP
10GBASE-SR SMPTE 2110, 2022-6, NMOS – Multi-mode, Encap/Decap (requires IP and GEN options, PHSXO-3GADV for 3G payloads). (Supports ST 2110 and ST 2022-6)

Accessories

PHSXM-CAGEP Universal SFP cage with power down – Universal replacement SFP cage – MSA/Non-MSA compliant
PHSXC-1
Audio cable – D15 break out cable for AES, Analogue audio and GPI
PHSXWM
Sx wall bracket – Sx wall mounting bracket for easy charging (Does not include the charger)

Extended Warranty

PHSX-3YEAR
3 Year Warranty* – Upgrade standard warranty period to three years total (excludes SFP modules)
PHSX-5YEAR
5 Year Warranty* – Upgrade standard warranty period to five years total (excludes SFP modules)
*One year warranty included as standard
