Phabrix Rx 2000

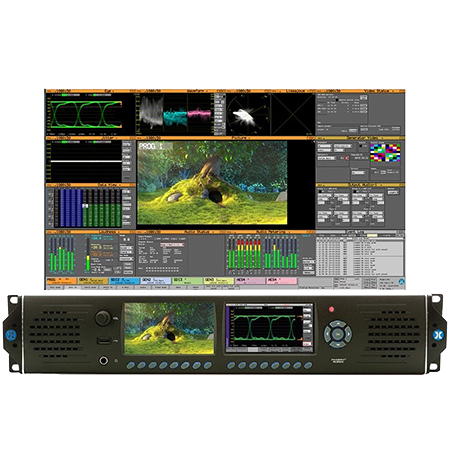

The top-of-the-line Phabrix Rx 2000 offers up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and can also provide signal generation. Up to 16 instruments can be displayed per channel for video analysis and physical layer testing via an external monitor. Monitoring of the instruments and video can also be performed using dual built-in screens and audio speakers. With all these advanced capabilities, Rx 2000 is ideal for broadcast QC, whether it’s in the studio, MCR or live production trucks.

Rx 2000 enables faster, intermittent fault finding using video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Fault diagnosis is also quickened by the Rx 2000’s remote access capability, which allows engineers to monitor and analyze video via a web browser from any location.

Workflows are optimized with ultra-flexible, user-defined instrument display layouts. Up to 16 instruments can be displayed simultaneously, at sizes ranging from full screen down to 1/16 screen. In multichannel monitoring environments, channel identification is simplified with a dedicated window color per channel. Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout pre-sets for fast turnarounds. Up to 99 presets are available to suit even the largest facility.

With advanced diagnostics tools, including up to four simultaneous Real-time Eye and Jitter physical layer analysis instruments plus closed caption, loudness and Dolby monitoring, Rx 2000 is ideal for OB trucks, broadcast facilities and video technology manufacturers.

PHRX2000A – Details

• Features:

  • Up four channels of video and audio analysis (dual inputs per analyzer)
  • Signal generator option for video and audio
  • 2K/3G/HD/SD-SDI and Optical support with looping I/O
  • 12-bit YRGB/YUV waveform monitor with H,V zoom
  • Vectorscope for checking color bias / conformity
  • Generation of 32 test patterns, including Pathological and moving patterns
  • REF locking and timing analysis
  • Fast recall of up to 99 configuration presets
  • Flexible layouts with instruments sized from 1/16 to full screen
  • Color coding for up to four channels for easier monitoring
  • Faster intermittent fault diagnosis with video and audio capture (13 frames HD, 60 frames SD) with automated triggering
  • SD/HD/3G/2K-SDI RTE (Real-time Eye) option for testing SMPTE compliance issues, including under/overshoot
  • Jitter analysis in five specified frequency bands
  • Up to 4 channels of closed captions can be displayed, with support for WTS/OP42/OP47, EIA 608 and EIA 708 formats
  • Ancillary data analyzer with support for ANC Timecode, reference VITC and LTC support
  • Compact 2RU design, just 15cm deep and weighing 2.3kg
  • Viewing angle tilt mechanism
  • Low power consumption (27W typical, 80W max) for cool operation
  • Up to 4 channels of loudness metering and monitoring, using a selected stereo pair or 5.1 surround audio. Supports ITU or EBU Recommendation 128. Loudness logs stored automatically
  • 16 channels embedded audio monitoring with level meters, phase meters, and Dolby E / AES support
  • TCP/IP interface for remote control and automated testing
  • Compact 2RU design, just 15cm deep and weighing 2.3kg
  • Viewing angle tilt mechanism
  • Low power consumption (27W typical, 80W max) for cool operation


• Specifications:

  • Video Inputs/Outputs
  • 4 – 8 x SDI for 2K/3G/HD/SD, 75 Ohm terminated BNC Inputs
  • 1 – 4 RTE Real-time Eye inputs (2K/3G/HD/SD-SDI)
  • SFP+ MSA/NON-MSA 12 Gbps copper or fiber SDI, 10G EthernetAudio Inputs/Outputs
  • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
  • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
  • Stereo analogue audio output, (via 26 pin high density `D’ Type socket)
  • Calibrated stereo balanced analogue audio output (option module)
  • LTC input (via 26 pin high density `D’ Type socket)User Interface/Networking & control
  • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
  • SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
  • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
  • IP sockets based remote control as standard
  • 8 x GPI I/O (via 26 pin high density `D’ Type socket)
  • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
  • FPGA firmware/software upgrade via Ethernet/USBMonitoring
  • Dual 16:9, 24 bit, 4.3″ TFT, 480 x 272 pixels OLED display
  • Front panel headphone connector 6.3mm (1/4 inch) stereo jack
  • Internal loudspeakers (2 x 7W wide range)
  • Front panel volume/gain controlGeneral
  • Formats supported (generation, analysis & monitoring): SD-SDI, HD-SDI, 3G-SDI, 2K-SDI
  • Reference: Reference/VITC input, passive loop through, BNC 75 Ohm compensated
  • Dimensions (W x H x D): 17.32 x 3.46 x 5.9 Inch (excluding ears & projections); 2RU 19″ rack mount
  • Weight 5.07 lbs
  • Viewing angle tilt mechanism
  • Power consumption: 27W typical 70W max (variable on modules inserted)
  • 4 Pin XLR power connector: 12V nominal (9V-18V)
  • AC Power adaptor (included): 90-264VAC, 120W
  • Whisper quiet temperature controlled fan (1 x 60mm external)
  • Warranty: 1 year standard increased to 3 or 5 years with Extended Warranty package
