PHRX1000AE – Overview

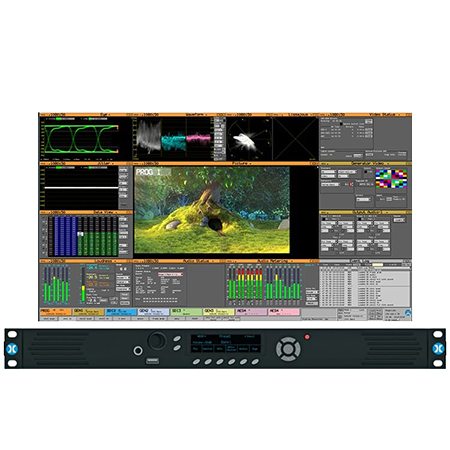

The advanced Phabrix Rx 1000 is a compact, 1RU version of the Rx 2000 without the dual built-in monitoring displays or speakers. It provides up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and also provides signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external monitor. The Rx 1000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules.
PHRX1000AE – Details
-
Features:
- Up to 99 configurable presets
- Video Capture and Remote access
- Four Channel Eye and Jitter Analysis
- AV Delay Generation and Analysis (Analysis Optional)
- Extensive Video Toolset
- Multi-channel Audio Analysis
-
Specifications:
- SD-SDI, HD-SDI as standard
- Optional 3G-SDI (license)
- OLED display
- Front panel backlit navigation keypad
- Front panel volume/gain control
- Front panel headphone connector 6.3mm (1/4 inch) Stereo jack
- Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
- Internal loudspeaker Beeper
- I/O Module slots (each supporting a range of audio/video modules): 4
- Internal Dual Dolbyr decoder module slot (option): 1
- HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
- SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
- Basic SDI generator included as standard (replaces instrument output)
- 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
- Reference/VITC input, passive loop through, BNC 75 Ohm compensated
- AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
- LTC input (via 26 pin high density `D’ Type socket)
- 8x GPI I/O (via 26 pin high density `D’ Type socket)
- Stereo analog audio output, (via 26 pin high density `D’ Type socket)
- Calibrated stereo balanced analog audio output (option module)
- Ethernet remote control via browser, RJ45 connector, 10/100Base-T
- IP sockets based remote control as standard
- FPGA firmware/software upgrade via Ethernet/USB
- Desktop mounting kit
- 19″ Rack-mount kit – 1U
- Whisper quiet temp controlled fan – 2 x 40mm internal
- Power consumption (variable on modules inserted) – 24W typical 70W max
- 4 Pin XLR power connector, 12V nominal (9V-18V)
- AC Power adaptor (incl), 90-264VAC, 120W
- Dimensions (w x h x d) excl ears & projections -440x44x170mm
- Weight (chassis with CPU module and 1x AG option module fitted) – 2kg
