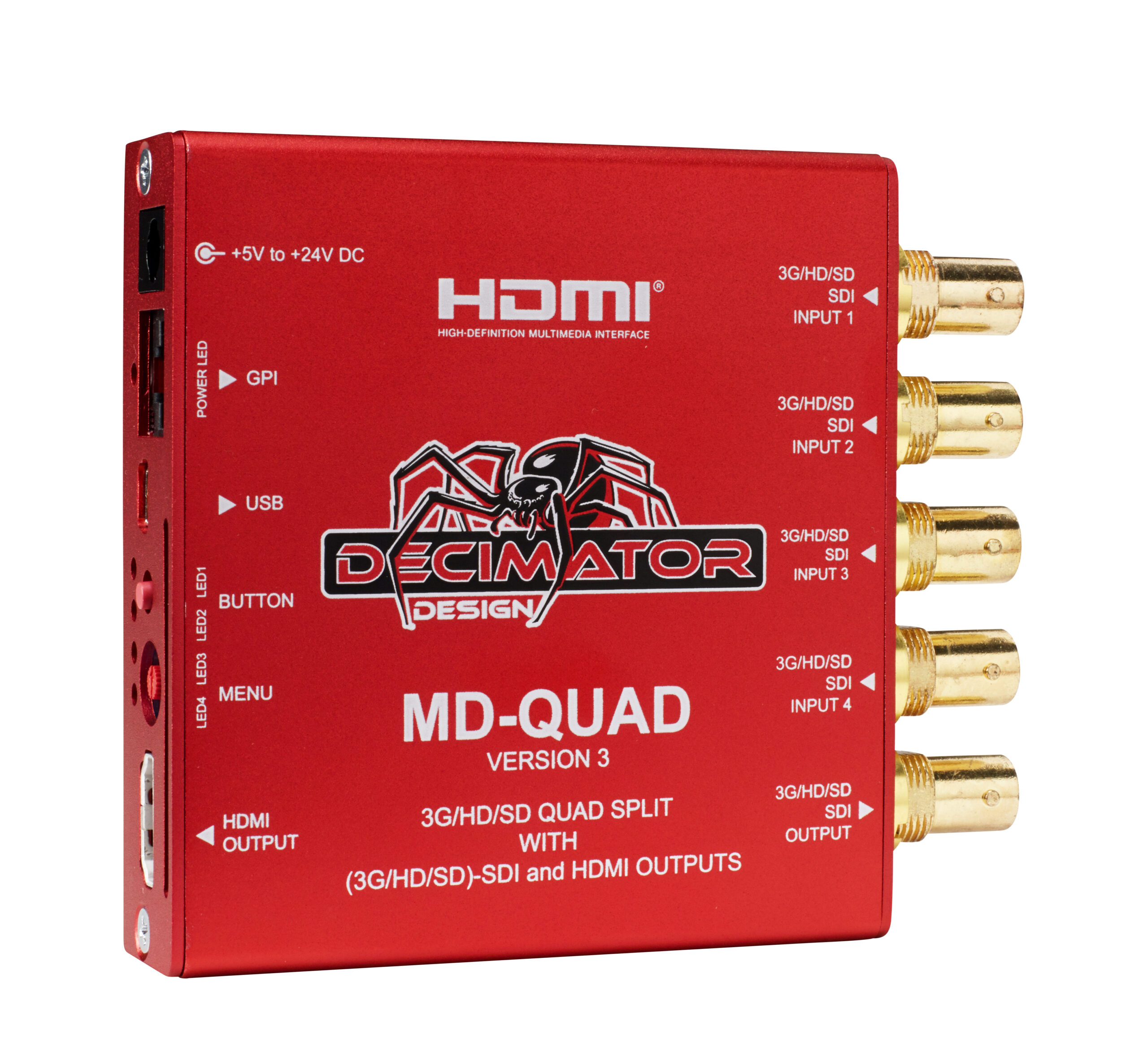

Decimator Design – MD-QUAD V3

• (NEW) Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
• (NEW) Horizontal and/or Vertical image flipping per window
• Low cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Tallies can be applied to either Tally Boxes (Default) or Border
• Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing
non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection
(4 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and
HDMI outputs
• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
• USB port for control and updates
• Locking DC Power Socket
• 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching
• RS422/485 is also include on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol
• The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket

MD-QUAD V1 and V2
MINIATURE (3G/HD/SD)-SDI MultiViewer / Quad-Split
with (3G/HD/SDI)-SDI and HDMI Outputs
(Replaced by MD-QUAD V3 hardware)

NEW FEATURES:
(Excluding units with serials starting with MQS)
• Professional 3G/HD/SD Test Pattern Generator featuring:
– 26 Selectable Output Formats
– 54 Test Patterns including Luma and Chroma Zone-plates
• Audio Tone Generator
• In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
• On-screen audio id pop-up when selection audio source in Quad-Split mode
• On-screen display pop-up when using the rotary to allow for use when without a PC

FEATURES:
• Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
• Selectable output format in Quad-Split mode
• Dynamic UMD and Tally support via RS422/485 pins on RJ45 connector
• GPI on RJ-45 for remote switching and Tallies
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 8-Channel Audio metering for each quadrant with:
– The first two audio groups individually selectable
– Vertical or Horizontal Bars
– AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
– Bar & Float, Bar only or Float only (Float is not available for MQS serials)
– Transparency adjustment
– Separate Bar and Float Ballistics control
– Adjustable Reference level
– Red, Yellow and Green Range adjustment
– Bar thickness adjustment
– Margin adjustment
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed
simultaneously
• Variable aspect ratios per quadrant
• All 4 inputs can be displayed simultaneously on a single output
• Pass-Through mode allowing any of the 4 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• On-Screen 16 character IDs (UMDs) for each input
• An extensive selection of user controllable functions via a easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
• USB port for control and updates
• Locking DC Power Socket
• The following is included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
