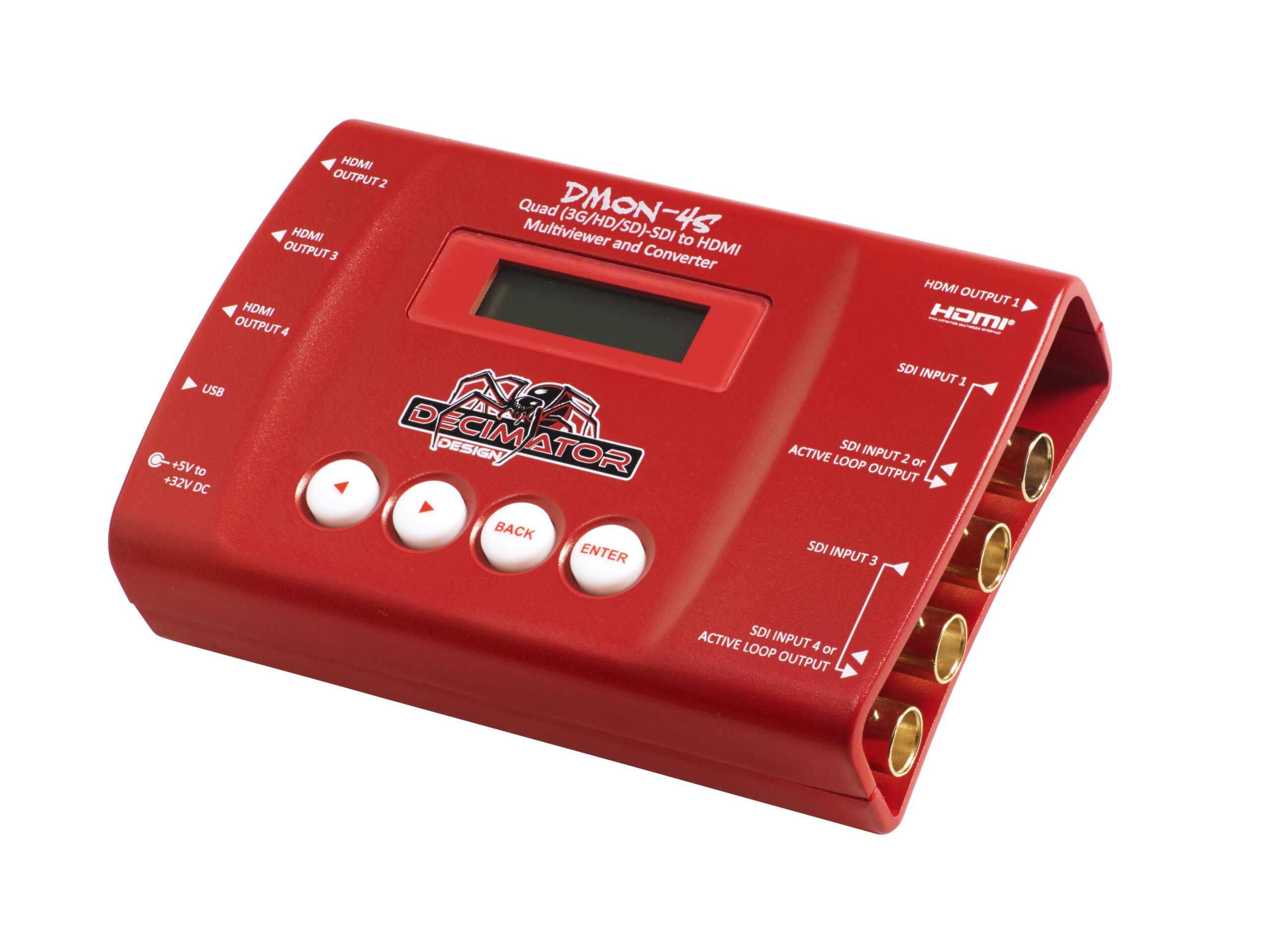

Decimator Design – DMON-4S

• (NEW) Support for both 3G level A and B on the inputs.
• (NEW) Horizontal and/or Vertical image flipping per window
• Includes 4 independent mini HDMI outputs that can each output any
of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
For example you could use the unit to have:
– 4 independent SDI to HDMI converters
– 3 independent SDI to HDMI converters with a quad-split output
– 2 independent SDI to 2 x HDMI converters with loop through
– A single SDI or Multi-View to 4 x HDMI outputs
• Inputs 2 and 4 can be individually changed to output active loop
copies of inputs 1 and 2 respectively.
• (NEW) Multi-View mode offers:
– Custom Layouts with various standard layouts
– Load and restore Custom Layouts
– Fast switching between inputs using Full-Screen scaling
– Selection of audio from any input
– 16 Character UMD overlay per window with individual enables,
custom positioning and size
– Low latency buffering for each input allowing non-synchronous
inputs
– Each window is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
– Variable aspect ratios per window
• The DMON-4S is a truly portable converter, that incorporates our new
easy to use LCD and button control system.
• This unit also includes:
– USB port for control and firmware updates
– Heavy duty metal box
– Metal Thread Locking DC Power Socket
– Power Supply, HDMI Cable and USB Cable
