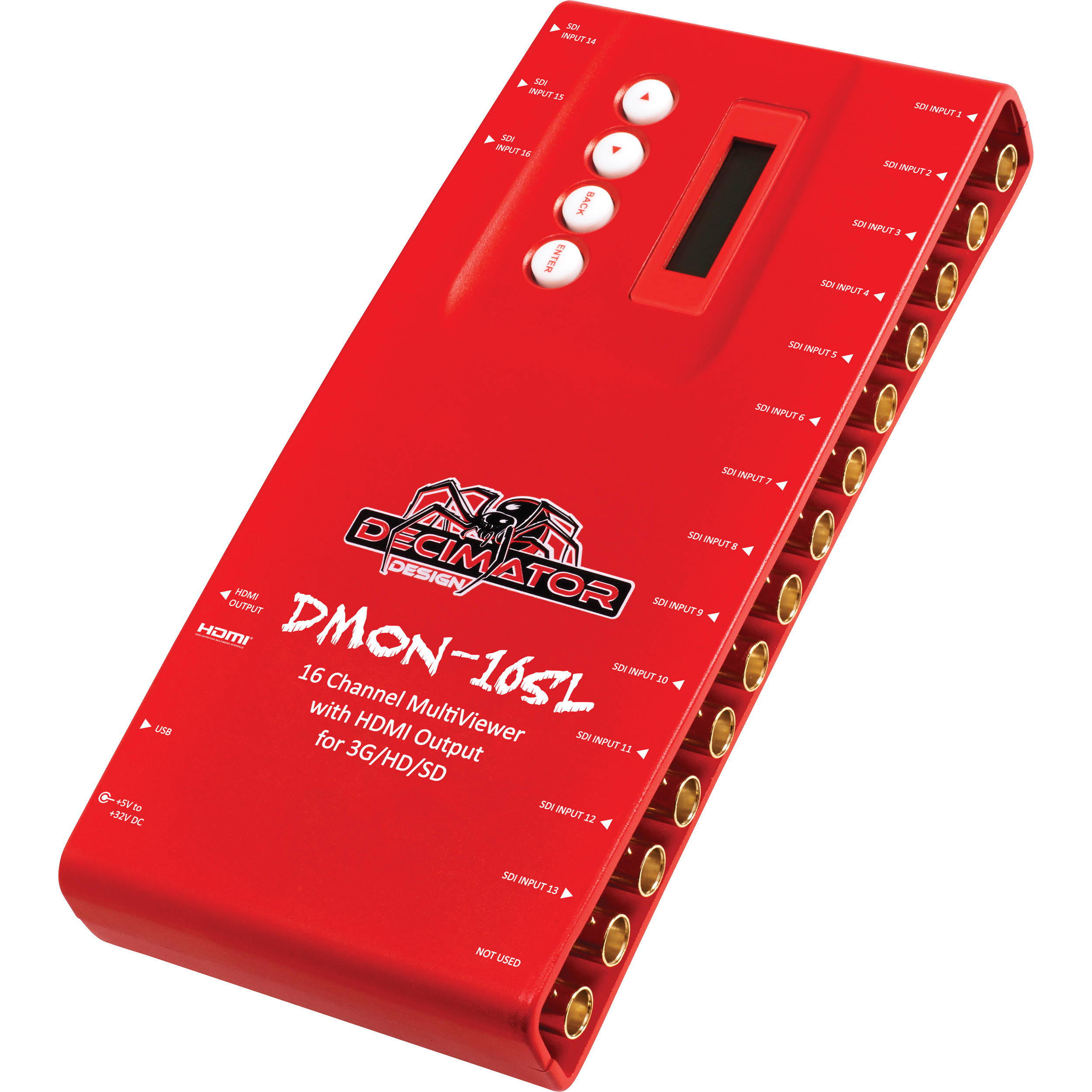

Decimator Design – DMON-16SL

• (NEW) Support for both 3G level A and B on the inputs.
• Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• Audio ID overlay
• Load and restore Custom Layouts
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• 16 x (3G/HD/SD)-SDI inputs with auto detection(26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
• In Pass-Through mode the selected input is passed through to the HDMI output
• The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
• This unit also includes:
– USB port for control and firmware updates
– Heavy duty metal box
– Metal Thread Locking DC Power Socket
– Power Supply, HDMI Cable and USB Cable
