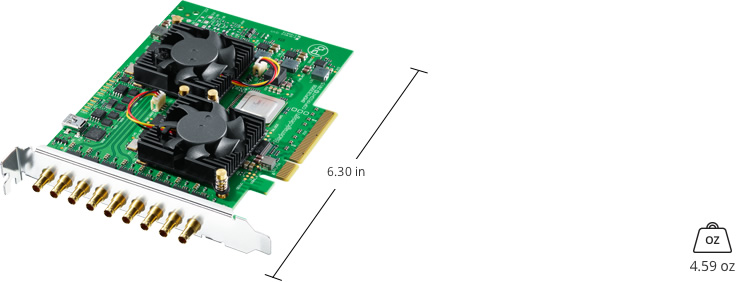

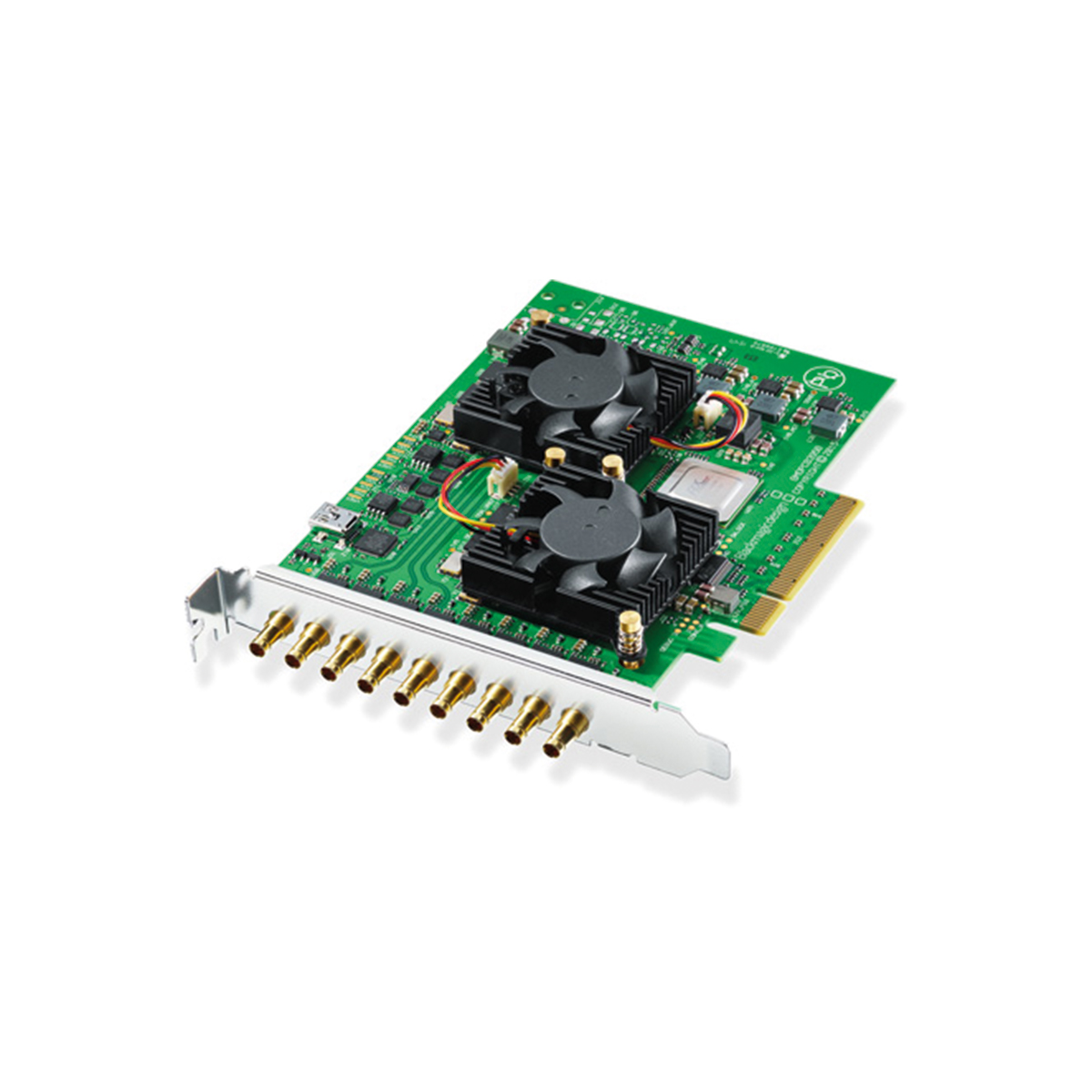

Blackmagic DeckLink Quad 2
Stokta yok
[av_hr class=’invisible’ height=’15’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’]
1.430,00 $ 1.554,00 $
Stokta yok
Blackmagic DeckLink Quad 2

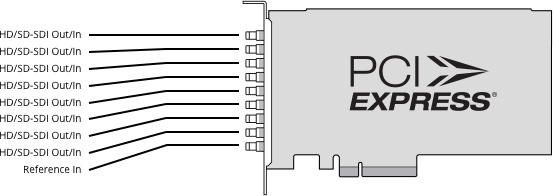

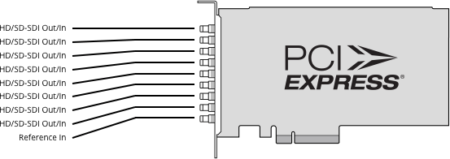

DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
SDI Video Input
8 x bidirectional 12-bit SD/HD independantly configurable as either Input or Output
SDI Video Output
8 x bidirectional 12-bit SD/HD independantly configurable as either Output or Input
SDI Audio Input
16 channels embedded in SD and HD
SDI Audio Output
16 channels embedded in SD and HD
Sync Input
Blackburst in SD 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.
Computer Interface
PCI Express 8 lane, compatible with 8 and 16 lane PCIe slots.
[av_button label=’Detaylı Bilgi İçin…’ link=’manually,https://www.blackmagicdesign.com/products/decklink’ link_target=’_blank’ size=’small’ position=’center’ icon_select=’yes’ icon=’ue826′ font=’entypo-fontello’ color=’theme-color’ custom_bg=’#444444′ custom_font=’#ffffff’]
[av_one_full first]
[av_social_share title=’Paylaşın’ style=” buttons=”]
[/av_one_full]
Marka
Blackmagicdesign
