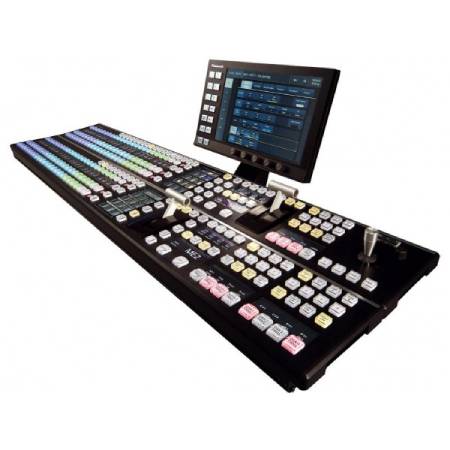

Panasonic AV-HS6000

Even with its 3U compact size, the main unit is equipped with an abundance of inputs and outputs for great system integration that include 32 SDI and 2 DVI inputs plus 16 SDI outputs.  To top it all off, 4 DVEs per ME enable diverse transitions when producing creative video in demanding fast paced situations.

Key features / benefits
32 inputs (DVI×2) and SDI×16 outputs; all inputs have built-in frame synchronizers
Color correctors are installed at 8 inputs and 4 outputs **
Up-converters at 4 inputs and down-converters are installed at 2 outputs
Equipped with 4 DVE and 2 DVE (2D) per ME to handle backgrounds and keys
AUX1 to AUX4 buses are equipped with MIX transitions
Equipped with real-time high-quality chroma keying that employs Primatte®* algorithms. Standard 1 channel, expandable up to 4 channels**
4 keyer per ME (total 8 channels) also capable of PinP
4 downstream and 4 upstream keyers**
Equipped with 4 independent MultiViewer displays
Single MultiViewer can display a maximum of 16 video sources
Source names, tallies, audio level meters, and safety markers are displayable
Web server function: The switcher can be set and operated via LAN connection**
Shot, event** and macro** memory allow to preset and recall frequently used effects
Video clips and still images can be registered up to 4ch each, allowing them to be easily used for CG wipes
Plug-in software, external device control capability can be added in accordance with the operation workflow**
Operation with two additional panels is possible by IP connection**
The switcher can be set by the 10,1-type touch-operated Menu Panel AV‑HS60C3G (optional) or by a PC monitor and USB mouse
*Primatte® is a registered trademark of IMAGICA DIGIX Inc. The copyrights of Primatte® belong to IMAGICA DIGIX Inc. The patents for Primatte® belong to IMAGICA DIGIX Inc.
**available in V2.00.00 or higher
