Capitol IP / Capitol IP 12
DIGITAL FOR EVERYONE!

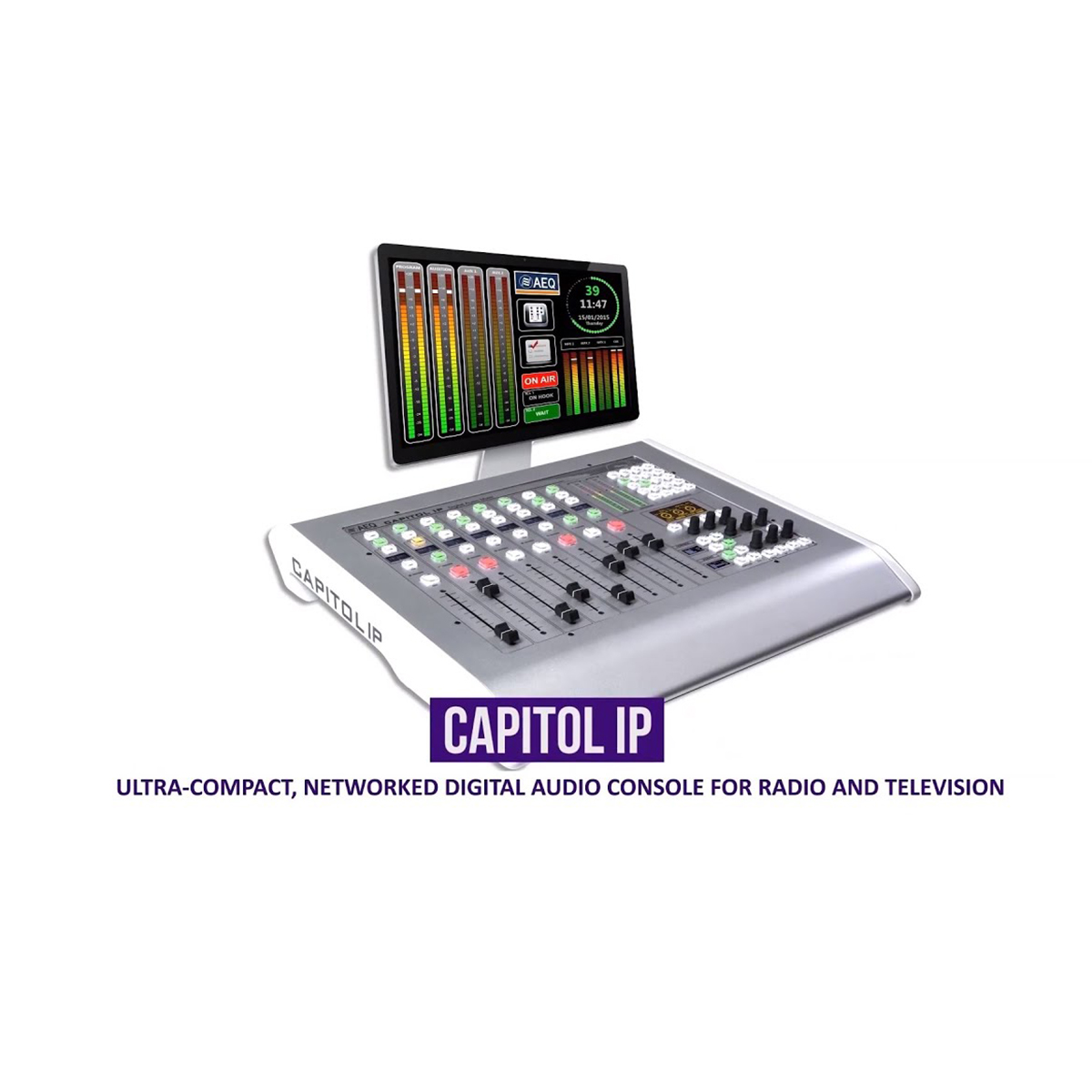

IP Networked, Ultra-compact digital console.
CAPITOL IP is an 8 channel digital mixing console. Its performance is based on the AEQ CAPITOL console and the experience gained with this model.
The control surface has been redesigned with new silent buttons, more programmable keys and a new arrangement of the monitoring section controls. IP connectivity in CAPITOL IP console is implemented through a single module with 16 input and 16 output channels incorporated in its core, and excludes MADI connectivity.
One of the primary features that make the CAPITOL IP an outstanding choice is its internal routing capability in combination with the available number of inputs: 4 selectable Mic/Line Inputs, 12 Analogue Inputs, 4 AES/EBU (AES3) Digital Stereo Inputs, 2 USB Digital Stereo Inputs for broadcast automation, 2 optional Inputs through Digital telephone Hybrids. Additional input signals are available via either an optional AoIP multi-channel Ethernet connector for 16 channels or a MADI multi-channel fiber-optic link for 64 input signals.
The Output section of the CAPITOL IP is not less impressive; 8 analog Outputs, 4 AES/EBU (AES3) Digital Stereo Outputs, 2 USB Digital Stereo Outputs for broadcast automation, 2 optional Outputs through Digital Telephone Hybrids.
So the rear panel is similar to the former model with two pre-cut holes for both Ethernet connectors. CAPITOL IP consoles can have a single multichannel access: IP or MADI. Depending on the configuration, the unit may come either with the Ethernet connectors or the MADI optical connector – or without any of these options – but never with both at the same time.

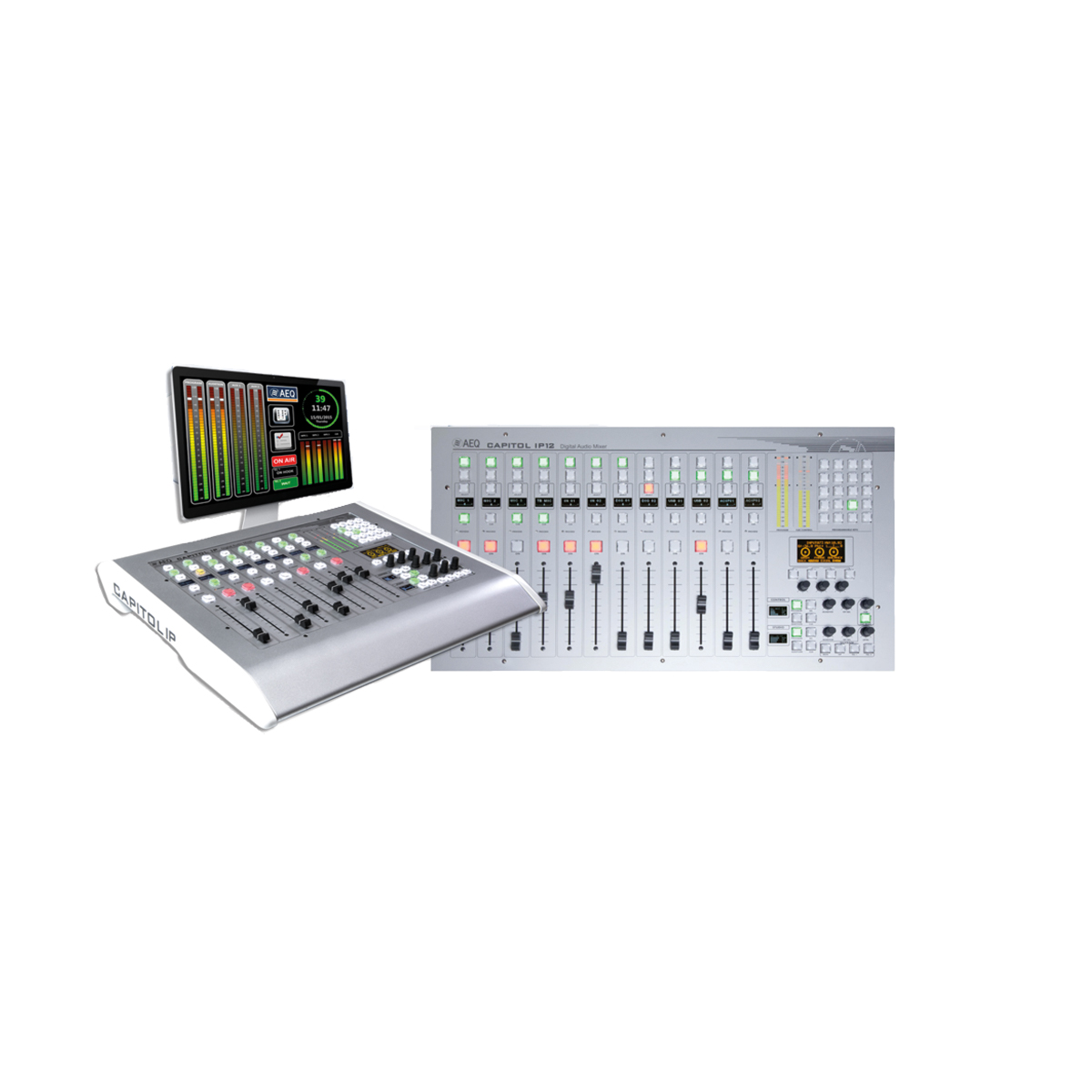

CAPITOL IP 12 is a control surface with 12 audio channels and control and monitoring module, with 12 100mm physical faders. 2 RU frame with process, audio inputs and outputs, power supply and equipment internal control. Optional redundant power supply, dual telephone hybrid, and AoIP Multichannel Network modules.
IP-based multi-channel audio networking made simple with AEQ and DANTE TM !
http://www.aeq.eu/products/capitol-ip
Fiyat, yapılan konfrigasyona göre değişiklik gösterebilir.FİYAT SORUNUZ…
